A specialized tool designed to hold wooden workpieces securely together, especially during gluing or fastening operations, is essential in woodworking. These devices apply pressure evenly, ensuring a tight and accurate bond. For instance, these tools might be used to join two pieces of lumber edge-to-edge to create a wider panel, or to hold components of a cabinet frame while the adhesive cures.
The utility of such implements stems from their capacity to maintain consistent pressure, which is critical for achieving strong and durable joints. Throughout woodworking history, various designs have evolved to meet diverse needs, from simple screw-based mechanisms to more complex lever-action systems. Their utilization improves precision and significantly reduces the likelihood of project failure due to misalignment or weak bonds. The availability of such devices greatly expands the range and complexity of projects that can be undertaken.
The ensuing sections will delve into the different types of these holding devices, their specific applications, and the considerations involved in selecting the appropriate tool for a given task. A comprehensive overview of the materials, construction, and maintenance procedures relevant to these indispensable woodworking aids will also be provided.
Essential Usage Guidelines
Optimal results are achieved through adherence to best practices. The following guidance enhances efficiency and project quality during woodworking endeavors.
Tip 1: Even Pressure Distribution: Ensure uniform force across the workpiece. Uneven application may result in warping or joint failure. Use cauls protective blocks to distribute force and prevent damage.
Tip 2: Proper Alignment: Verify accurate positioning prior to tightening. Misalignment during the fastening process can compromise structural integrity and aesthetic quality.
Tip 3: Thread Lubrication: Regularly lubricate the threads to maintain smooth operation and extend lifespan. Use a dry lubricant, such as wax, to prevent wood dust accumulation.
Tip 4: Appropriate Sizing: Select a tool of suitable length and capacity for the task. Overextension or inadequate reach can lead to instability and inaccurate results.
Tip 5: Controlled Tightening: Avoid overtightening. Excessive force can damage the workpiece or the tool itself. Gradual, incremental pressure is preferred.
Tip 6: Surface Protection: Employ protective pads between the jaws and the material. This prevents indentation and staining, preserving the surface finish.
Tip 7: Regular Inspection: Routinely examine the tool for wear and tear. Damaged or weakened components should be repaired or replaced to ensure safe and effective operation.
Adherence to these guidelines maximizes performance and prolongs the service life of woodworking holding devices, contributing to higher-quality outcomes. These practices contribute to accuracy and safety in woodworking projects.
The subsequent section will address common issues encountered and troubleshooting techniques.
1. Pressure Distribution
Even pressure distribution is paramount when employing woodworking holding devices. The application of uniform force across the joint surfaces ensures a strong and stable bond. Insufficient or uneven pressure results in gaps, weak adhesion, and potential structural failure. The type of holding device and any supplementary materials significantly influence pressure distribution. For example, using a bar clamp with improperly sized cauls concentrates force on a limited area, potentially crushing the wood fibers beneath the clamp while leaving other areas insufficiently pressurized. Conversely, a hand screw clamp, correctly adjusted, distributes pressure more evenly over a smaller area, making it suitable for delicate or curved workpieces.
The selection of appropriate holding device is also crucial for pressure distribution. Pipe clamps are versatile for large surfaces but require care to prevent bowing if over-tightened. Spring clamps offer quick application, but may lack the force for secure adhesion on thicker materials. Cam clamps provide rapid, adjustable pressure, but their focused force necessitates protective pads to prevent indentation. A real-world example includes assembling a cabinet door using bar clamps; improper positioning and failure to alternate clamp placement may create racking, preventing square assembly.
In summary, effective pressure distribution is integral to the functionality of woodworking holding devices and the creation of durable wood joints. An understanding of the tool’s mechanics, the workpiece characteristics, and implementation best practices, leads to high-quality woodworking outcomes. Without careful consideration of this element, the potential for project failure increases substantially.
2. Jaw Configuration
Jaw configuration directly dictates the utility and applicability of woodworking holding devices across diverse project requirements. Variations in jaw design influence the clamping pressure, surface contact, and the ability to accommodate unique workpiece geometries. A thorough understanding of these configurations facilitates informed tool selection for optimal results.
- Parallel Jaws
Parallel jaws represent a fundamental design, providing uniform pressure across flat surfaces. These jaws are essential for edge-to-edge gluing and assembling rectangular frames. Example: A parallel jaw on a bar clamp ensures a flush joint when joining two boards to create a tabletop, distributing force evenly to prevent warping or misalignment.
- Angled Jaws

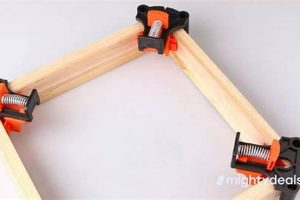

Angled jaws accommodate non-parallel surfaces, allowing for the secure clamping of beveled or tapered workpieces. Miter clamps, for instance, employ angled jaws to hold mitered corners during gluing and fastening. Example: Picture frames, often assembled with 45-degree mitered corners, rely on angled jaws to maintain precise alignment while the adhesive cures.
- Padded Jaws
Padded jaws incorporate soft materials, such as rubber or cork, to protect delicate surfaces from marring or indentation. These are critical when working with pre-finished materials or fragile wood species. Example: Securing a guitar neck during fretwork benefits from padded jaws, preventing damage to the instrument’s finish and ensuring a secure hold without compromising the wood.
- Swivel Jaws
Swivel jaws adapt to irregular shapes and contours, providing a secure grip on non-planar surfaces. These jaws are particularly useful for clamping workpieces with complex geometries. Example: When repairing a curved chair leg, a clamp with swivel jaws can conform to the leg’s profile, distributing force evenly and preventing stress concentrations that might cause damage.
These varied jaw configurations underscore the importance of selecting the appropriate holding device for a given woodworking task. The choice directly impacts the clamping effectiveness, surface integrity, and overall project quality. Recognizing the strengths and limitations of each jaw design is essential for any woodworker seeking precise and reliable results.
3. Material Compatibility
The selection of appropriate woodworking holding devices demands careful consideration of material compatibility. The interaction between the tool’s components and the workpiece can profoundly affect project outcomes. Chemical reactions, physical damage, and aesthetic imperfections may arise from incompatibility. The subsequent discussion outlines key facets of this crucial aspect.
- Surface Finish Interaction
Direct contact between clamping surfaces and finished wood can result in marring or discoloration. Certain metals may react with specific finishes, leaving permanent stains. Protective padding, typically constructed from cork, felt, or rubber, mitigates this risk. An example includes clamping a freshly lacquered surface with an unprotected steel clamp, potentially resulting in indentations or chemical etching.
- Wood Species Sensitivity
Some wood species are more susceptible to crushing or indentation under pressure. Softwoods, such as pine or cedar, require lower clamping forces and broader clamping surfaces to prevent damage. Dense hardwoods, like maple or oak, can withstand higher pressures but may still exhibit compression marks if the clamping surface is too small. The use of cauls sacrificial pieces of wood placed between the workpiece and the clamp distributes pressure and protects vulnerable materials.
- Adhesive Compatibility
The choice of adhesive influences the necessary clamping pressure and duration. Some adhesives require higher clamping forces for optimal bond strength, while others may expand or contract during curing, necessitating adjustments to clamping pressure. Furthermore, certain adhesives may react negatively with the clamping material, leading to contamination or bond failure. It is imperative to select adhesives and holding devices that are chemically compatible.
- Corrosion Concerns
The metallic components of holding devices are susceptible to corrosion, particularly in humid environments or when used with water-based adhesives. Corrosion can weaken the tool’s structure, impair its functionality, and transfer contaminants to the workpiece. Regular maintenance, including cleaning and lubrication, is crucial to prevent corrosion. In specific applications, stainless steel or coated clamps provide enhanced corrosion resistance.
Material compatibility considerations extend beyond preventing immediate damage; they ensure the long-term integrity and aesthetic quality of woodworking projects. A comprehensive understanding of material properties and potential interactions informs the selection and application of woodworking holding devices, minimizing risks and maximizing the likelihood of successful outcomes.
4. Thread Mechanism
The thread mechanism constitutes a crucial element in the functionality of woodworking holding devices. The design and quality of the threads directly affect the clamping force, ease of adjustment, and overall lifespan of the tool. Finer threads generally allow for more precise adjustments and higher clamping forces, but may be more susceptible to damage and require greater effort to tighten. Coarser threads, conversely, offer quicker adjustments but may lack the precision and holding power needed for demanding tasks. The material from which the threads are manufactured, typically steel or iron, influences their durability and resistance to wear and corrosion. A poorly designed or manufactured thread mechanism can result in slippage, binding, or complete failure of the clamp, rendering it unusable.
Practical applications demonstrate the importance of a well-functioning thread mechanism. For instance, when edge-gluing wide boards, a bar clamp with smoothly operating threads enables the woodworker to apply even pressure across the entire length of the joint, ensuring a tight, seamless bond. Conversely, a clamp with damaged or corroded threads may apply uneven pressure, leading to gaps in the joint and compromising its structural integrity. Similarly, in intricate joinery, a hand screw clamp with finely adjustable threads allows for precise positioning and controlled pressure, minimizing the risk of damage to delicate components. Regular maintenance, including cleaning and lubrication of the threads, is essential to prolong the life and maintain the performance of woodworking holding devices.
In summary, the thread mechanism represents a critical determinant of a woodworking holding device’s effectiveness. Its design, material composition, and maintenance directly influence the clamp’s ability to apply and maintain consistent pressure, thereby impacting the quality and longevity of woodworking projects. Challenges such as thread wear, corrosion, and misalignment necessitate careful selection and diligent maintenance to ensure optimal performance and prevent premature failure. The reliability of the thread mechanism is inextricably linked to the success of the woodworking operation.
5. Clamping Force
Clamping force, the pressure exerted by a woodworking holding device on a workpiece, is a defining characteristic that dictates its suitability for specific applications. The magnitude of this force directly influences the integrity of adhesive bonds, the stability of assembled components, and the overall structural soundness of a woodworking project. Insufficient clamping force compromises joint strength, leading to gaps, slippage, and eventual failure. Excessive force, conversely, can crush wood fibers, distort components, or damage delicate surfaces. Therefore, understanding the relationship between clamping force and the requirements of a given task is crucial for effective woodworking.
The clamping force required varies considerably depending on the materials being joined, the adhesive used, and the nature of the joint. Hardwoods, for example, typically require greater clamping force than softwoods to achieve a secure bond. Certain adhesives, such as epoxy resins, necessitate higher pressure than others, such as aliphatic resin glues. Complex joinery, such as mortise-and-tenon joints, benefit from the concentrated pressure afforded by specialized holding devices. A practical example involves assembling a frame using bar clamps. Applying insufficient pressure results in visible gaps at the joints, while over-tightening may bow the frame members, compromising its squareness and aesthetic appeal. The selection of appropriate holding devices must take into account the specific clamping force requirements of the project.
In summary, clamping force is an indispensable parameter in woodworking, directly impacting the quality and longevity of finished projects. Its proper application, informed by material properties, adhesive characteristics, and joint design, is a hallmark of skilled woodworking. Challenges related to uneven force distribution, material sensitivity, and thread mechanism maintenance necessitate careful attention to detail. Mastering the concept of clamping force represents a fundamental aspect of woodworking expertise, ensuring reliable and professional results.
6. Throat Depth
Throat depth, a critical specification of woodworking holding devices, defines the distance between the clamping face and the tool’s frame. This dimension determines the maximum distance from an edge at which a workpiece can be secured. Understanding throat depth is essential for selecting the appropriate holding device to accommodate specific project geometries and assembly requirements.
- Accessibility in Frame Assembly
During frame assembly, throat depth dictates the ability to reach the center of the frame members. A limited throat depth restricts the clamping area, potentially hindering the secure joining of components. For larger frames, holding devices with substantial throat depths are necessary to exert force at the required location, ensuring accurate alignment and strong adhesive bonds. Insufficient throat depth often necessitates the use of multiple smaller tools or specialized clamping jigs.
- Edge Gluing Wide Panels
Edge gluing wide panels requires substantial reach to apply pressure along the entire joint line. Holding devices with adequate throat depth maintain consistent pressure across the panel width, preventing bowing or misalignment during the gluing process. Short throat depths necessitate clamping near the edge, which may not provide sufficient force in the center of the panel. The choice of holding device with appropriate throat depth directly affects the flatness and overall quality of the resulting panel.
- Molding and Trim Applications
Securing moldings and trim often involves reaching over existing surfaces or complex profiles. Throat depth enables the application of force beyond these obstructions, ensuring proper adhesion without damaging adjacent areas. Holding devices with shallow throat depths may be unsuitable for these tasks, necessitating alternative methods or specialized tools. The ability to effectively clamp moldings and trim relies heavily on sufficient throat depth to clear interfering structures.
- Complex Joinery and Assemblies
In complex joinery scenarios, such as assembling cabinets or intricate furniture pieces, throat depth provides the necessary clearance to position holding devices without interfering with other components. Insufficient throat depth restricts placement options, potentially compromising the clamping force or the alignment of parts. The ability to maneuver holding devices within tight spaces is critical for achieving accurate and durable assemblies. Therefore, throat depth is a key consideration in the design and execution of advanced woodworking projects.
The practical implications of throat depth are evident in various woodworking tasks, from basic frame assembly to complex joinery. Careful consideration of this dimension ensures the selection of appropriate holding devices, facilitating efficient and accurate clamping operations. Failure to account for throat depth limitations may result in compromised joint strength, misalignment, or damage to the workpiece. The relationship between throat depth and the specific requirements of a project underscores its importance in achieving successful woodworking outcomes.
Frequently Asked Questions
The following addresses common queries regarding woodworking holding devices, their proper usage, and maintenance.
Question 1: What is the optimal clamping pressure for softwood materials?
Softwood materials, such as pine or cedar, require lower clamping pressures than hardwoods. Excessive force can crush the wood fibers, compromising the joint’s integrity. A general guideline is to apply sufficient pressure to close the joint firmly without causing visible indentation. Experimentation and experience are crucial in determining the ideal pressure for specific softwood species.
Question 2: How should woodworkers clamp threads be maintained to ensure longevity?
Regular cleaning and lubrication are essential for maintaining holding device thread mechanisms. Remove dust and debris with a brush, and apply a dry lubricant, such as paraffin wax or a silicone-based product, to the threads. Avoid using oil-based lubricants, as they attract dust and grime, accelerating wear. Periodically inspect the threads for damage and replace worn or damaged components.
Question 3: What are the potential consequences of using incompatible materials for clamp pads?
Incompatible clamp pad materials can cause staining, discoloration, or physical damage to the workpiece. Certain rubbers may react with finishes, leaving permanent marks. Ensure that the pad material is non-reactive and appropriate for the wood species and finish being used. Cork, felt, and specialized rubber compounds are commonly employed for clamp pads.
Question 4: How does throat depth impact the selection of a clamp for frame assembly?
Throat depth dictates the maximum distance a holding device can reach from the edge of a workpiece. In frame assembly, an adequate throat depth is necessary to apply pressure at the joint location. Insufficient throat depth necessitates the use of multiple holding devices or specialized clamping jigs, potentially compromising the joint’s alignment and strength. Choose a clamp with sufficient throat depth to reach the desired clamping point.
Question 5: What are the best practices for preventing racking during clamp application?
Racking, or the distortion of a frame due to uneven clamping pressure, can be prevented by alternating the placement of holding devices and using cauls to distribute the force evenly. Ensure that the frame is properly aligned before applying pressure. Monitor the frame for signs of distortion during tightening, and adjust the clamp placement as needed.
Question 6: What alternatives exist for increasing clamping surface area on irregular workpieces?
When clamping irregular workpieces, custom-shaped cauls conforming to the piece’s geometry effectively increase the clamping surface area. These cauls distribute pressure evenly, preventing stress concentrations and damage. Options range from simple wooden blocks to complex contoured forms molded from epoxy or resin. The use of these specialized forms can compensate for irregularities and achieve a tight seal.
Adherence to these guidelines promotes optimal performance and extends the service life of woodworking holding devices, improving project quality.
The following section will address common issues encountered during clamping.
Woodworkers Clamp
This exposition has outlined the critical roles, variations, and considerations surrounding the woodworking holding device. Effective selection, utilization, and maintenance of this tool directly influence project quality, precision, and longevity. From understanding clamping force to material compatibility and jaw configuration, the mastery of these factors elevates woodworking from a simple craft to a precise and reliable endeavor.
A commitment to informed clamp selection, combined with consistent application of best practices, is essential for both novice and experienced woodworkers. Diligence in tool maintenance and a thorough understanding of clamping principles ensure both the integrity of the finished product and the safety of the operator. Continued exploration and application of the insights presented here will undoubtedly lead to enhanced woodworking proficiency and superior outcomes.
