This refers to a specific size of tool commonly employed in carpentry to secure wooden pieces together. The device consists of a threaded pipe onto which adjustable clamping jaws are fitted. The specified measurement indicates the diameter of the pipe used in its construction. For example, one might utilize this implement to hold two pieces of lumber firmly while adhesive dries, ensuring a strong and accurate bond.
Its significance stems from its versatility and clamping force. These attributes are critical in various woodworking projects. Historically, similar devices have been used to apply pressure in manufacturing and construction, evolving from simpler screw-based mechanisms to the more robust pipe-based designs seen today. The ability to create strong, reliable joints is paramount to the longevity and structural integrity of wooden constructions.
The subsequent discussion will delve into the selection criteria for appropriate pipe clamps, the techniques for their optimal usage, and the maintenance procedures that ensure their prolonged operational life within a woodworking environment.
Guidance on Using 1/2 Inch Pipe Clamps in Woodworking
The following are recommendations for effectively employing these specific tools to ensure secure and accurate workpiece fixation.
Tip 1: Pipe Preparation: Before initial use, thoroughly clean and degrease the threaded pipe to minimize slippage and ensure smooth jaw movement. Apply a thin coat of paste wax to the threads to further reduce friction and prevent rust.
Tip 2: Jaw Alignment: Confirm that the clamping jaws are parallel to each other prior to applying pressure. Misalignment can induce uneven stress on the workpiece and compromise the joint’s integrity.
Tip 3: Pressure Modulation: Apply clamping force gradually, avoiding excessive tightening. Over-tightening can damage the wood fibers, particularly with softer species, and potentially distort the workpiece.
Tip 4: Protective Interface: Insert a thin piece of wood or cushioning material between the jaws and the workpiece to prevent indentation or marring of the surface, especially when working with finished pieces.
Tip 5: Parallel Clamping: When gluing multiple boards edge-to-edge, alternate the clamp placement above and below the joint line to maintain a flat and even surface during adhesive curing.
Tip 6: Pipe Length Consideration: Select pipe lengths appropriate for the project’s dimensions. Longer pipes provide greater clamping capacity, but can be cumbersome in smaller applications. Short pipes are more manageable for limited spaces.
Tip 7: Regular Maintenance: Routinely inspect the threads and jaws for damage or wear. Clean and lubricate the threads periodically to ensure optimal performance and longevity.
Adhering to these recommendations will enhance the clamping accuracy, minimize workpiece damage, and extend the service life of this essential woodworking tool.
The subsequent section will address the common issues encountered during clamp operation and their corresponding solutions.
1. Clamping Pressure
Clamping pressure is a critical factor in woodworking when utilizing a threaded pipe. The consistent application of appropriate force directly influences the strength and integrity of bonded joints. An inadequate application can result in weak bonds, while excessive force may damage the workpiece.
- Achieving Optimal Force
The 1/2 inch pipe diameter typically allows for sufficient tightening to achieve necessary clamping pressure for many common woodworking adhesives. The user must, however, develop a feel for the appropriate torque. Over-tightening can cause dimpling or crushing of softer woods, while insufficient torque results in a compromised bond line.
- Pressure Distribution
The design of the clamping jaws, which interface with the pipe and the workpiece, is crucial for even pressure distribution. Poorly designed jaws can concentrate force in specific areas, leading to distortion or damage. The use of cauls, or sacrificial pieces of wood, between the jaws and the workpiece is often recommended to distribute pressure more evenly.
- Adhesive Requirements
Different adhesives require varying levels of clamping pressure for optimal bonding. Polyurethane glues, for example, often require less pressure than traditional PVA adhesives. The manufacturer’s specifications for the chosen adhesive should always be consulted to determine the appropriate clamping force.
- Wood Species Considerations
The density and hardness of the wood species being joined influence the amount of clamping pressure that can be safely applied. Softer woods, such as pine or basswood, require less pressure than hardwoods, such as oak or maple. Careful consideration must be given to avoid crushing the wood fibers.
These considerations highlight the nuanced relationship between clamping pressure and the proper application of a 1/2 inch pipe tool. A thorough understanding of these factors allows the woodworker to achieve strong, reliable joints without compromising the integrity of the materials.
2. Thread Integrity
Thread integrity is paramount to the functionality and lifespan of any implemented with a pipe. The threads are responsible for translating rotational force into linear clamping pressure, enabling the user to securely fasten workpieces. Degradation or damage to these threads directly compromises the clamp’s ability to function effectively and safely.
- Load-Bearing Capacity
The threads must withstand significant tensile and shear stresses during clamping. The thread profile, material strength, and manufacturing precision determine the load-bearing capacity. Damaged or worn threads reduce this capacity, potentially leading to slippage or complete failure under load. For example, a clamp used to assemble a large cabinet frame requires threads capable of maintaining substantial pressure over an extended period.
- Thread Wear and Corrosion
Repeated use and exposure to environmental factors contribute to thread wear and corrosion. Abrasive particles, moisture, and chemical exposure accelerate degradation. Regular cleaning and lubrication are essential to mitigate these effects. Rust on threads, for instance, increases friction, making tightening difficult and reducing the achievable clamping force. It can also gradually weaken the metal, eventually leading to thread stripping or breakage.
- Thread Alignment and Engagement
Proper thread alignment is crucial for efficient force transmission. Misaligned threads can lead to uneven pressure distribution and premature wear. Full thread engagement, meaning sufficient threads are in contact with the clamping mechanism, is necessary to maximize holding power. Cross-threading, where the threads are forced together at an angle, drastically reduces integrity and should be avoided.
- Material Quality and Hardness
The material used to manufacture the pipe and the clamping mechanism must possess adequate hardness to resist deformation under load. Soft or low-quality materials are prone to thread stripping and damage. Hardened steel alloys are often employed in high-quality clamps to ensure durability and maintain thread integrity over time. A clamp utilizing inferior materials may exhibit thread failure after only a few uses.
In essence, the reliability and longevity of the 1/2 inch pipe version are inextricably linked to the condition and quality of its threads. Routine maintenance, proper usage techniques, and the selection of high-quality tools are essential to preserve thread integrity and ensure safe and effective clamping performance.
3. Material Compatibility
Material compatibility is a critical consideration in woodworking, especially when employing implements featuring metal components. Interactions between the tool and the wood can lead to undesirable outcomes. A lack of awareness regarding these potential reactions can compromise the aesthetic and structural integrity of the finished project.
- Iron Staining
The iron or steel present in some pipe clamp components can react with tannins in certain wood species, most notably oak, walnut, and cherry. This reaction results in dark staining around the contact points. Protective barriers, such as waxed paper or plastic shims, should be used between the clamp jaws and the wood surface to prevent direct contact and subsequent staining. For instance, clamping an oak tabletop directly with unprotected cast iron jaws will likely result in unsightly black marks that are difficult to remove.
- Galvanic Corrosion
When dissimilar metals are in contact in the presence of an electrolyte (such as moisture), galvanic corrosion can occur. If the pipe is galvanized steel and the clamping jaws are a different metal, moisture from the wood or the environment can initiate this process. Corrosion weakens the clamp components and can also transfer corrosive byproducts to the wood surface. Regularly applying a protective coating, such as paste wax, to the metal surfaces helps to minimize moisture exposure and prevent galvanic corrosion.
- Adhesive Interference
Certain materials used in the construction of clamping jaws can interfere with the adhesion of glues or finishes. Residues on the clamp surface, such as oil or mold-release agents, can contaminate the wood and inhibit proper bonding. Thoroughly cleaning the clamping jaws with a solvent before use is essential to ensure effective adhesive performance. For example, silicone-based mold release agents, often present on cast metal components, can repel certain wood glues, leading to a weak or failed joint.
- Wood Softness and Indentation
The hardness of the clamping jaws relative to the wood species being clamped dictates the likelihood of indentation or crushing. Softwoods, such as pine or cedar, are particularly susceptible to damage from hard metal jaws. Using softer interface materials, like wood shims or cork pads, distributes the clamping pressure over a larger area, reducing the risk of indentation. Direct clamping of a pine molding with untreated metal jaws can easily leave permanent impressions.
The implications of material incompatibility in woodworking with pipe versions extend beyond mere aesthetics. Structural weaknesses, compromised glue joints, and accelerated corrosion can significantly impact the longevity and performance of the finished piece. Careful selection of appropriate materials, preventative measures, and mindful application techniques mitigate these risks, ensuring high-quality results.
4. Jaw Parallelism
Jaw parallelism, the degree to which the clamping surfaces remain equidistant throughout their range of motion, is a crucial factor influencing the effectiveness of a tool utilizing a threaded pipe. Deviation from perfect parallelism can lead to uneven pressure distribution, compromised joint integrity, and potential damage to the workpiece.
- Even Pressure Distribution
Parallel jaws ensure consistent pressure across the entire surface of the wood joint. Non-parallel jaws concentrate force on one edge, potentially crushing wood fibers or creating a weak bond line. For example, if the jaws are significantly out of parallel when edge-gluing boards for a tabletop, the resulting surface may be uneven, requiring additional sanding and material removal.
- Joint Integrity and Strength
Accurate parallelism directly impacts the strength of glued joints. Uneven pressure compromises adhesive contact, leading to a weaker bond that is more susceptible to failure under stress. Imagine clamping a miter joint with misaligned jaws; the resulting corner might exhibit gaps or weaknesses, diminishing its structural integrity and aesthetic appeal.
- Workpiece Distortion
Non-parallel jaws can induce bending or twisting forces in the workpiece, especially when clamping thin or flexible materials. This distortion can result in irreversible warping or deformation, rendering the piece unusable. For instance, clamping a thin sheet of plywood with jaws that are not parallel can cause it to bow or buckle, making it unsuitable for its intended purpose.
- Clamp Longevity and Performance
Maintaining parallelism minimizes stress on the clamp’s components, extending its service life. Uneven force distribution can prematurely wear or damage the threaded mechanism and clamping jaws. A clamp consistently used with misaligned jaws may exhibit premature thread wear or bending of the metal components, reducing its overall performance and longevity.
The criticality of jaw parallelism in achieving consistent and reliable clamping results using a tool featuring a threaded pipe necessitates careful inspection and adjustment. Ensuring that the jaws remain parallel throughout the clamping process is fundamental to achieving high-quality woodworking outcomes and prolonging the lifespan of the equipment.
5. Pipe Length
The pipe length in a woodworking setup using a threaded pipe is a determinant of the maximum workpiece dimension that the can accommodate. The stated dimension of one-half inch refers to the pipe’s diameter, while the length is variable, dictated by the specific project requirements. A longer pipe extends the clamping capacity, permitting the secure fastening of larger assemblies, such as cabinet carcasses or wide tabletops. Conversely, shorter pipes are more suitable for smaller projects or situations where maneuverability in a confined space is paramount. The relationship is thus direct: pipe length dictates the practical size limitations of the work the tool can effectively handle.
The impact of appropriate pipe length selection is observable in various woodworking scenarios. For instance, constructing a large dining table necessitates significantly longer pipes to span the width of the assembled boards. An insufficient length would render the clamp unusable for this purpose. Conversely, assembling small boxes or drawers benefits from shorter pipes, which are lighter and easier to manipulate within the tighter constraints. Furthermore, the overhang of the pipe beyond the workpiece should be considered. Excessive overhang can be unwieldy and potentially cause instability during the clamping process. Careful pre-planning and measurement are essential to select the correct length for the intended task.
In summary, pipe length is an essential and modifiable component of the “1 2 inch pipe clamp woodworking” system, directly influencing its practical application. The selection of the appropriate length is driven by the dimensions of the project, the available workspace, and the desired level of maneuverability. An informed decision regarding pipe length optimizes the tool’s functionality and contributes to the overall success of woodworking projects.
Frequently Asked Questions
The following addresses common inquiries regarding the application and maintenance of a specific woodworking implement.
Question 1: What determines the optimal pipe length for a given woodworking project?
Pipe length is primarily dictated by the dimensions of the workpiece. Select a pipe that comfortably exceeds the longest dimension requiring clamping, allowing for sufficient thread engagement on both clamping heads. Excessively long pipes can be unwieldy, particularly in smaller workspaces.
Question 2: How frequently should the threads be lubricated?
Thread lubrication frequency depends on usage intensity and environmental conditions. For regular use, a light application of paste wax or dry lubricant every few months is advisable. In humid or dusty environments, more frequent lubrication may be necessary to prevent corrosion and maintain smooth operation.
Question 3: Can this clamping setup be used on metal workpieces?
While primarily designed for woodworking, this equipment can be used on metal, provided appropriate precautions are taken. Protective shims should be employed to prevent direct metal-on-metal contact, mitigating the risk of scratching or marring the workpiece. Clamping pressure must be carefully controlled to avoid deformation of the metal.
Question 4: What is the expected lifespan of this clamp, assuming proper maintenance?
With consistent and diligent maintenance, a high-quality set can provide reliable service for many years. The longevity is contingent on factors such as the quality of materials, frequency of use, and adherence to recommended maintenance procedures. Regular cleaning, lubrication, and inspection for damage are crucial.
Question 5: How should a user address slippage during clamping?
Slippage typically indicates insufficient clamping pressure, contaminated threads, or worn clamping pads. Ensure adequate tightening force, clean and lubricate the threads, and replace worn or damaged pads. Consider using textured clamping pads to enhance grip on slippery surfaces.
Question 6: Are there alternative clamping solutions that may be better suited for specific woodworking applications?

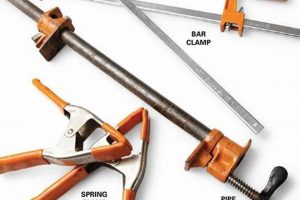

Indeed, a variety of clamping options exist. Bar clamps, parallel clamps, and spring clamps offer distinct advantages depending on the specific task. Bar clamps are versatile for general clamping, while parallel clamps provide superior pressure distribution. Spring clamps are suitable for light-duty applications requiring quick and easy clamping.
Effective utilization hinges on a thorough understanding of its operational characteristics and adherence to recommended maintenance protocols.
The subsequent discussion will delve into the safety considerations associated with pipe clamp usage in a woodworking environment.
Conclusion
This exploration of “1 2 inch pipe clamp woodworking” has detailed its construction, optimal usage techniques, and critical maintenance procedures. The discussions underscored the significance of thread integrity, jaw parallelism, appropriate pipe length selection, and material compatibility in achieving consistent and reliable clamping results. Furthermore, common operational issues and their respective solutions were addressed, providing practical guidance for woodworkers seeking to maximize the tool’s functionality.
The responsible and informed application of this essential woodworking implement contributes directly to the structural integrity and aesthetic quality of finished projects. Continued adherence to best practices, combined with ongoing vigilance regarding clamp condition and safety protocols, will ensure its enduring value within the woodworking discipline.
